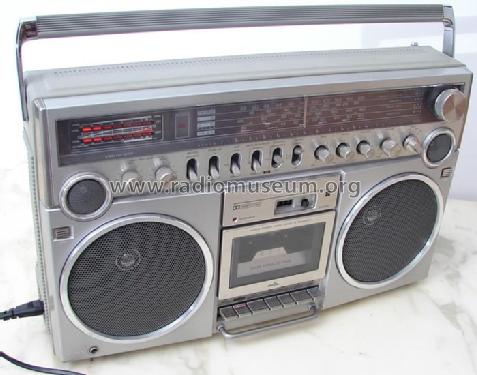

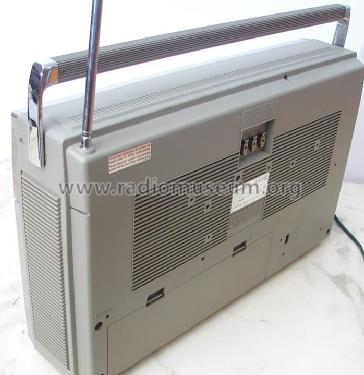

Panasonic - 4 Band Stereo Radio Cassette Recorder RX-5500LS

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1981 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 262364

• Picture

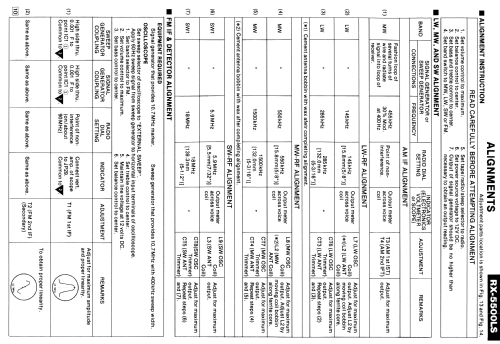

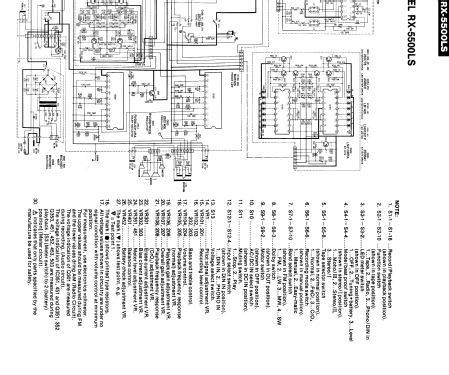

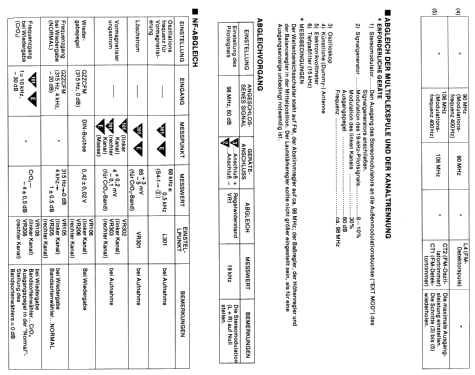

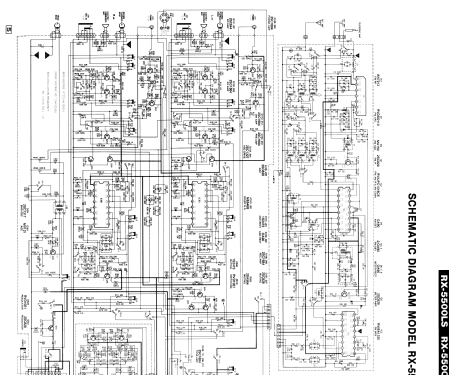

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 100-110; 115-127; 200-220; 230-250 / 13.2 / D: 8 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Panasonic - 4 Band Stereo Radio Cassette Recorder RX-5500LS - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 475 x 295 x 120 mm / 18.7 x 11.6 x 4.7 inch

• Notes

• Ghettoblaster-Boombox,

  Dolby NR, Super Permalloy Heads, tape counter, LED VU/batt./tuning meter, CrO² tape bias/eq selector, fine tuning, 2 x man. rec. level control or autom., 2 x 150 mm woofers, 2x tweeters, built in microphones, inputs for aerial, line-in, phono & microphone, ext. DC in, ext. speaker, headphone & microphone jacks,

  33 W mains power consumption.

  Made in Japan.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
