Panasonic CD Stereo System SA-AK47

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1999 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 323600

• Picture

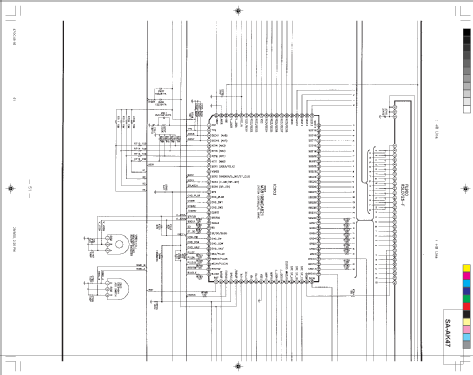

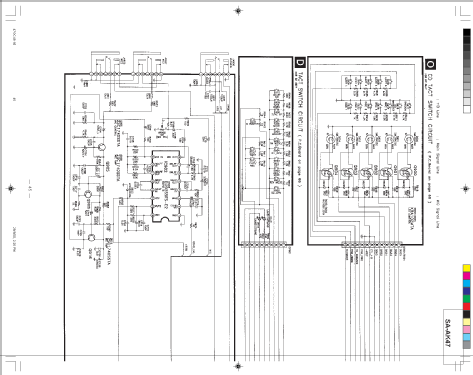

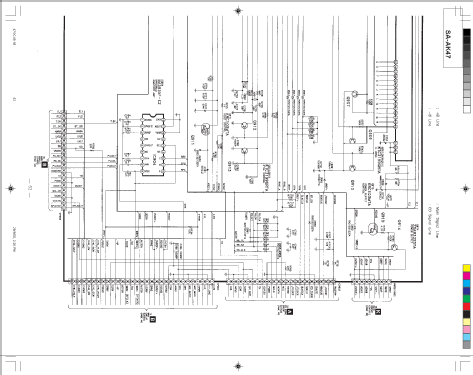

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Panasonic CD Stereo System SA-AK47 - Panasonic, Matsushita,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 320 x 330 mm / 10.6 x 12.6 x 13 inch

• Notes

• Mini music system with radio, CD changer (5 discs), and tape recorder / player.

  Has 2 external speakers.

  Minicadena de música con radio, cambiador de CD (5 discos), y grabadora / reproductora de cintas.

  Lleva 2 altavoces externos

  Made in Singapore

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by Josh Toreno. See "Data change" for further contributors.
