• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 2004 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 305313

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• CD-DVD-VMD-Blu-ray for video

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Panasonic DVD Video Recorder DMR-E75VEF - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 89 x 352 mm / 16.9 x 3.5 x 13.9 inch

• Notes

• Made in Japan.

  Dual tuners, one each for VCR and DVD.
  Channels 21 - 68.
  PAL-I.

  The TV interface is 625/50 PAL or 525/60 NTSC.
  The VCR can record PAL or NTSC from an external source or DVD, and PAL only from the TV tuner.

  The unit can dub from VHS to DVD and from DVD to VHS.
  Region code 2 (Europe).

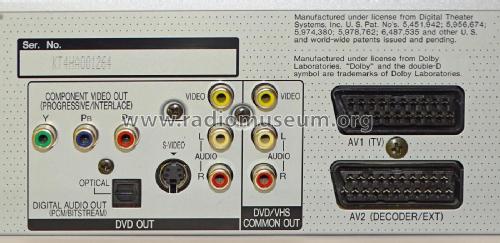

  2 SCART sockets for connection to TV receiver and external satellite receiver, decoder, etc.
  Input and output impedance of SCART video terminals is 75 ohms.
  Input impedance of audio terminals exceeds 10 Kohms. Output impedance of audio terminals is less than 1 Kohm.

  In addition to the SCART output, DVD output is available as component video (Y, Pb, Pr) and S-Video.
  DVD digital audio output is available optically. (PCM, Dolby Digital, DTS, MPEG).

  DVD and VHS can be switched to DVD/VHS Common output terminals.

  Component video and audio inputs, including S-Video, are available behind a panel at the left side of the front of the unit.
  Mono audio input is possible, recording on both channels.
  The panel also conceals FF/REW controls for DVD and VHS.

  VHS FF/REW time for an E-180 cassette is approximately 60 secs. Jet REW takes 43 secs.

  Remote control EUR7721X20 (made in Malaysia) uses 2 AA-size batteries.

  Power supply 220 - 240v 50 Hz, 39 W.

• Net weight (2.2 lb = 1 kg)
• 5.9 kg / 12 lb 15.9 oz (12.996 lb)

• Mentioned in
• - - Manufacturers Literature (DMR-E75V Operating Instructions dated 2004)

• Author
• Model page created by Bruce Taylor. See "Data change" for further contributors.
