• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 2001 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 317765

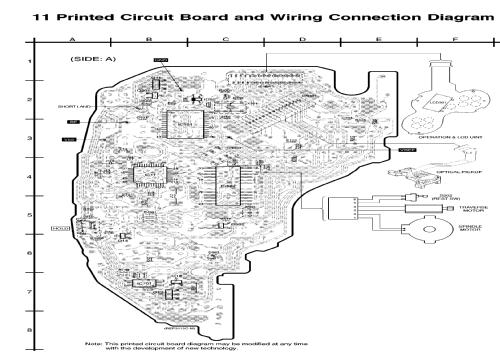

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Batteries / addl. power jack / AA: 2 x 1,5 / 4,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable CD Player SL-SX230 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 128 x 25 x 131 mm / 5 x 1 x 5.2 inch

• Notes

• - Portable CD Player

  - Anti-Skip System

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
