• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 342892

• Number of Transistors
• 7

• Semiconductors
• 2SA70 2SA101 2SA101 2SB346 2SB175 2SB178 2SB178

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (not changer)

• Power type and voltage
• Dry Batteries / D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (1.4 W max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Portable Radio-Phonograph SG-600 or SG-600H - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12.5 x 4.625 x 13.5 inch / 318 x 117 x 343 mm

• Notes

• Portable radio-phonograph (33⅓, 45, 78 rpm)

  Frequency Range:
  MW 525~1605 kHz
  SW 5.9~18 MHz

• Net weight (2.2 lb = 1 kg)
• 9 lb 4 oz (9.25 lb) / 4.200 kg

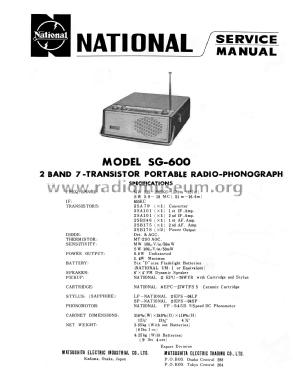

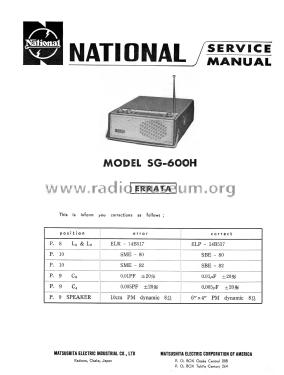

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
