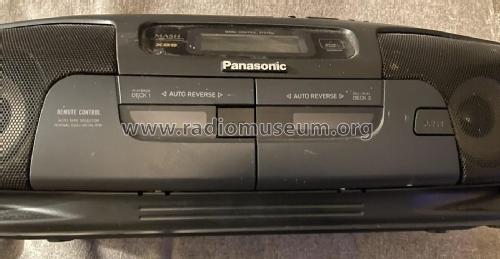

Portable Stereo CD System RX-DT501

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342197

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 459 / 10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Line / Batteries (any type) / 230-240/D: 10 x 1.5 / Clock Backup AA: 4 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 50 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Portable Stereo CD System RX-DT501 - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 640 x 203 x 265 mm / 25.2 x 8 x 10.4 inch
  • Notes

  • Portable Stereo Radio Cassette CD System Model Panasonic RX-DT501

    Frequency Range:
    FM 87.5 - 108 MHz
    LW 144 - 288 kHz
    MW 522 - 1611 kHz

    Front loading Tape Deck
    30 - 16000 Hz (normal tape)
    30 - 17000 Hz (with CrO2 Tape)
    Variable Sound Monitor

    Disc Player
    33.1 kHz Sampling, 16-bit linear
    20-20000 Hz
    D/A converter MASH (1 Bit DAC)

    2Way Speaker System - Woofer 100mm, Tweeter 20mm

    Power Consumption 45 watts

    Remote Control









  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
