National Panasonic R-1018

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1977–1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107748

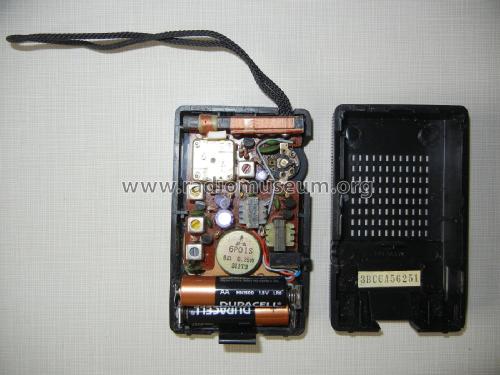

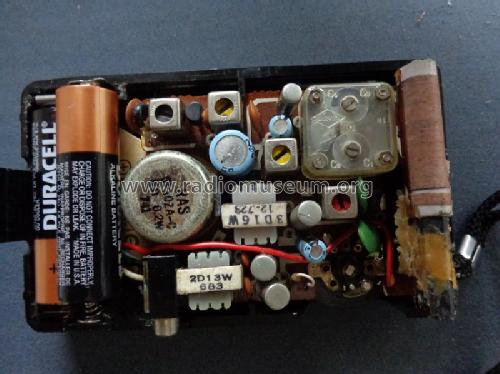

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SC1359 2SC1359 2SA101 2SB175 2SB176 2SB176

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Panasonic R-1018 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 62 x 108 x 30 mm / 2.4 x 4.3 x 1.2 inch

• Notes

• Panasonic R-1018 in various colors known, comes with a full size hard type see through plastic case including space for the earphone.

  This model sold in Australia between 1977 & 1980 for $7.95.

• Net weight (2.2 lb = 1 kg)
• 0.220 kg / 0 lb 7.8 oz (0.485 lb)

• Mentioned in
• Mingay's Price Service (Feb 1978 to Feb 1980.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
