• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117888

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

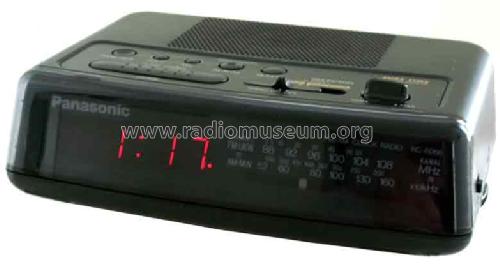

• Model: RC-6066 - Panasonic, Matsushita,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 200 x 60 x 140 mm / 7.9 x 2.4 x 5.5 inch

• Notes
• ICs: LM8560, CXA1019.
  9-V-Batterie für die Uhr.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
