FM-AM Clock Radio RC-685 Ch= RQX-101
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 173468
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- 2SA71 or. 2SA342 2SA377 2SA70 or. 2SA341 2SA70 or. 2SA341 2SA70 or. 2SA341 2SB173 2SB175 2SB178 2SB178 OA70 OA90 OA70 OA70
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: FM-AM Clock Radio RC-685 Ch= RQX-101 - Panasonic, Matsushita,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 12.5 x 5.125 x 7.25 inch / 318 x 130 x 184 mm
- Notes
-

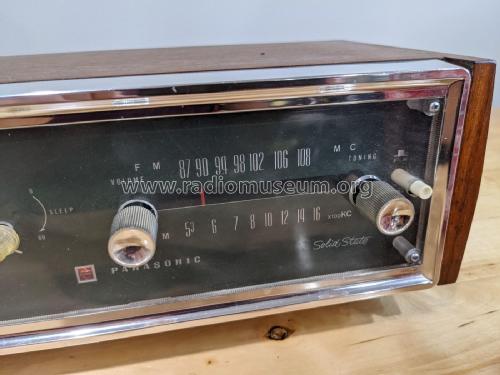

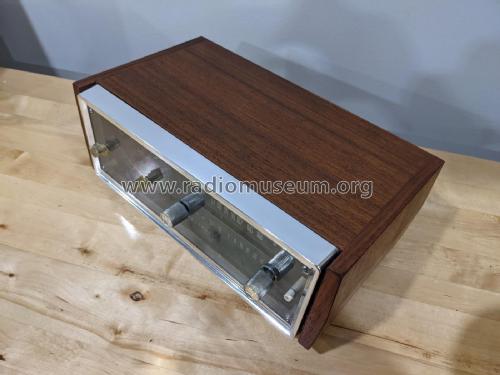

Early RC series solid state (transistor) clock radio from Panasonic. Walnut wood cabinet.
The model type RC-685 has been used around a decade later for a clock radio sold in Japan, see National Panasonic RC-685.
- Price in first year of sale
- 59.95 $
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Philip Obetsanov. See "Data change" for further contributors.
