RE-6137 Ch= RQX-122-1

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157842

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SC429 2SC185 2SC183 2SD157 2SC184 2SC469 2SC469

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RE-6137 Ch= RQX-122-1 - Panasonic, Matsushita,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 5.5 x 4.25 inch / 305 x 140 x 108 mm

• Notes

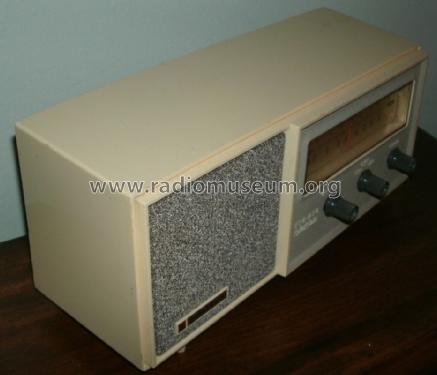

• Panasonic RE-6137 FM-AM Solid State 2-Band 7-Transistor 7-Diode;
  FM: 87 - 108 MHz,
  AM: 525 - 1605 KHz,
  FM AFC, ivory cabinet, black front with chrome speaker grille, 7 W power consumption, made in Japan.
