• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130723

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-120; 9; 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

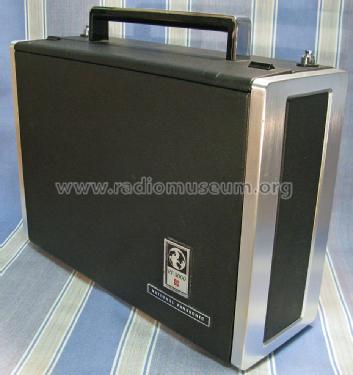

• Model: RF-5000A [21 Transistor] - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 16.5 x 12 x 6 inch / 419 x 305 x 152 mm

• Notes
• Labeled: "National-Panasonic" RF-5000A, 8 SW bands, Bands: 0,15-0,4; 0,525-1,605; 1,6-4,5; 4,5-6,5; 6,5-9; 9-12; 12-16; 16-20; 20-25; 25-30 MHz; FM 76 - 108 MHz; tuning meter, FM-AFC, 21 transistors, 15 diodes, terminals for ext. FM & AM & dipole antenna in, earth, MPX out, Stereo-in, Tape-in, Phono-in & earphone. Built-in 120V/9V AC adapter.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
