RS-296 US

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1975 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 285223

• Picture

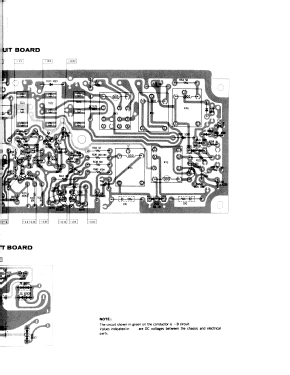

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 50-60Hz, 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: RS-296 US - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 535 x 194 x 383 mm / 21.1 x 7.6 x 15.1 inch

• Notes

• Seletor / Inversor inteiramente automatico  com capacidade para 20 cassetes.Leitura continua ou seletiva.O dispositivo de inversão automatica permite ouvir ambos os lados da cassete.Paragem automatica no final de cada ciclo.Supressor de ruídos incorpurado que permite eliminar o ciciar da fita magnética

• Net weight (2.2 lb = 1 kg)
• 18.6 kg / 40 lb 15.5 oz (40.969 lb)

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
