- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 348723
Front View
Front View
Back View
Bottom View

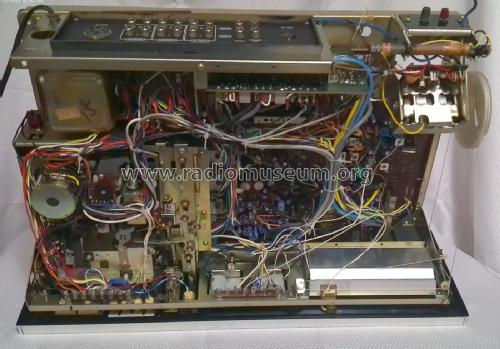

Chassis Component View
Chassis Bottom View
- Number of Transistors
- Semiconductors present.
- Semiconductors
- AN211
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Special Tape or Cassette-Format
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RS-864S - Panasonic, Matsushita,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 525 x 175 x 325 mm / 20.7 x 6.9 x 12.8 inch
- Notes
-
Quadraphonic 8 Track Tape Recorder/Player
IC AN211-A FM detector/mpx decoder
Has the Pana-ject feature that ejects the tape at the end of track 4 (track 2 in Quad)
- Net weight (2.2 lb = 1 kg)
- 12.5 kg / 27 lb 8.5 oz (27.533 lb)
- Author
- Model page created by Lester Troeckler. See "Data change" for further contributors.
