- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 353010
- Number of Transistors
- 15
- Semiconductors
- 2SC429 2SC185 2SC829 2SC829 2SC829 2SB346 2SB346 2SB324 2SB324 2SB346 2SB346 2SB324 2SB324 2SB324 2SC828 OA90 OA90 1S1211 1S1211 OA90 OA90 OA90
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Line / Batteries (any type) / 50-60Hz, 100-120; 200-240 / D: 6 x 1.5 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 1.2 W (1.8 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

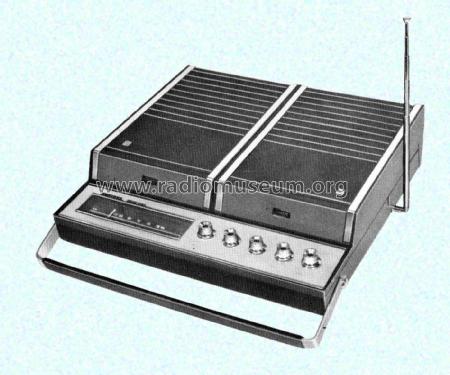

- Model: SG-453F - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 13.625 x 4 x 12.5 inch / 346 x 102 x 318 mm
- Notes
-
AM-FM 2-speed portable stereo radio-phonograph
Frequency Range AM: 525~1605 kHz Frequency Range FM: 87~106 MHz Speakers: 10cm PM Dynamic 8Ω x 2 Pickup: National EPU-17STA with cartridge Cartridge: National EPC-69STE with stylus Stylus: National EPS-04ST
- Net weight (2.2 lb = 1 kg)
- 7 lb 11 oz (7.688 lb) / 3.490 kg
- Literature/Schematics (1)

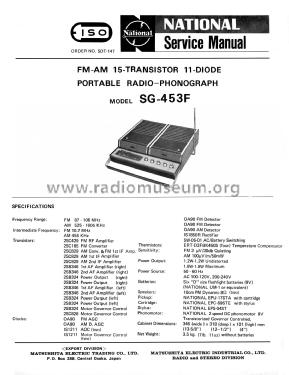

- -- Original-techn. papers. (National Service Manual, Order No. SDT-147)
