• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 216136

• Number of Transistors
• 6

• Semiconductors
• 2SA102 2SA101 2SA101 2SB175 2SB176 2SB176 OA90

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Solid State Clock Radio 6-Transistor RC-1087 - Panasonic, Matsushita,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 7.22 x 3.47 x 5.33 inch / 183 x 88 x 135 mm

• Notes
• Panasonic Solid State Clock Radio 6-Transistor Model RC-1087.
  Tuning Range AM 525-1605 kHz.
  Power Consumption 5 Watts.

• Net weight (2.2 lb = 1 kg)
• 2 lb 8 oz (2.5 lb) / 1.135 kg

• Literature/Schematics (1)

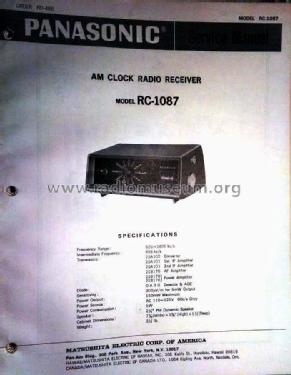

• - - Manufacturers Literature (Panasonic Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
