Solid State FM-AM RE-746

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1968 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234492

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 455 / 10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Solid State FM-AM RE-746 - Panasonic, Matsushita,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 16.5 x 8 x 4.5 inch / 419 x 203 x 114 mm
  • Notes

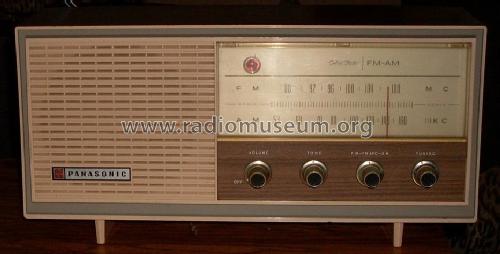

  • Panasonic Table Top FM-AM Transistor Radio Model RE-746.
    FM AFC.
    Tone Control.

    Frequency Range:
    AM 525 - 1605 kHz
    FM 87 - 108 MHz


    Power Consumption 9 Watts

  • Net weight (2.2 lb = 1 kg)
  • 6 lb 5 oz (6.313 lb) / 2.866 kg
  • Mentioned in
  • - - Manufacturers Literature (Panasonic Service Manual No. 400)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
