• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1970–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 270003

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors
• 2SB348 2SB175 2SB175 2SB346 2SB348 2SB175 2SB175 2SB346 2SB324 2SB175 2SA564 2SB178 unknown_tr_PNP unknown_tr_NPN unknown_tr_NPN 2SB324 OA70 1S990 SW-05

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 50/60Hz 100 / 115 / 125 / 200 / 230 / 250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo Cassette Deck RS-256US - Panasonic, Matsushita,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10.5 x 3.75 x 10 inch / 267 x 95 x 254 mm

• Notes

• National Model RS256US Stereo Cassette Deck

  A compact stereo cassette deck deck designed to connect to most stereo amplifiers for recording or playback.

  Features: 16 transistors, 4-track. Push button controls. End of tape indicator. Twin VU meters; 3-digit tape counter; 30 - 12,000 Hz. DIN connection or line output auxiliary input. (MINGAY'S PRICE SERVICE)

• Price in first year of sale
• 175.00 AUS $

• Mentioned in
• Mingay's Price Service (Aug 1970 to Aug 1972.)

• Literature/Schematics (1)

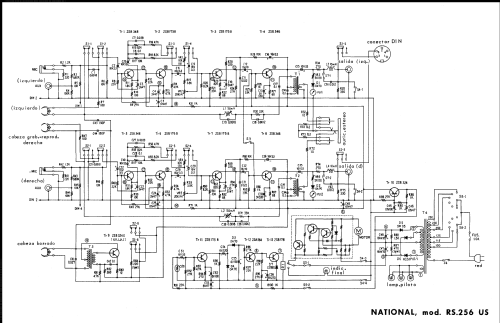

• -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo V, 1977)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
