Stereo Radio Cassette Player RQ-V156

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Year
1996 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
242681

Schematics

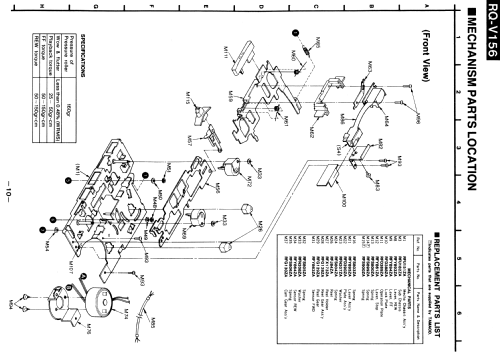

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085635) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085636) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085637) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085638) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085639) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085640) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085642) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085644) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085645) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085646) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085647) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 2085649) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (3)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 1538116) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (1)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 1538117) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (1)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 1538119) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (1)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 1538120) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (1)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 1538121) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (1)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 1538122) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (1)

Stereo Radio Cassette Player RQ-V156; Panasonic, (ID = 1538125) Radio — Panasonic, Stereo Radio Cassette Player RQ-V156 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Details
Cassette-Recorder or -Player

Power type and voltage
Batteries / addl. power jack / AA: 2 ×1,5 / 3 Volt

Loudspeaker
- For headphones or amp.

Power out
0.04 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Stereo Radio Cassette Player RQ-V156 - Panasonic, Matsushita,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
88 x 121 x 34 mm / 3.5 x 4.8 x 1.3 inch

Notes
XBS, Auto Reverse.

Net weight (2.2 lb = 1 kg)
0.234 kg / 0 lb 8.2 oz (0.515 lb)

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
