Stereo Radio Cassette Player RQ-V 164

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Year
1996

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
283320

Schematics

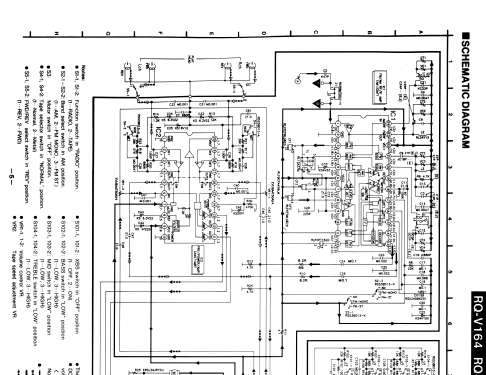

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085979) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085980) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085981) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085982) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085983) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085984) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085985) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085986) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085987) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085988) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085989) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2085991) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (3)

Stereo Radio Cassette Player RQ-V 164; Panasonic, (ID = 2010317) Radio — Panasonic, Stereo Radio Cassette Player RQ-V 164 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Details
Cassette-Recorder or -Player

Power type and voltage
Dry Batteries / 2 x 1,5 Volt

Loudspeaker
- For headphones or amp.

Power out
0.04 W (undistorted)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Stereo Radio Cassette Player RQ-V 164 - Panasonic, Matsushita,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
120 x 85 x 36 mm / 4.7 x 3.3 x 1.4 inch

Notes
Cassettenplayer mit UKW/MW Radio, Autoreverse, Anti-Roll-Mechanik, 3-Band Equalizer, XBS.

Net weight (2.2 lb = 1 kg)
0.166 kg / 0 lb 5.9 oz (0.366 lb)

Mentioned in
-- Original prospect or advert (Herstellerprospekt: Panasonic Audio 1996, Seite 14)

Author
Model page created by Roland Müller. See "Data change" for further contributors.
