Stereo Radio Cassetten-Recorder CD RX-ED55

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1996 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 250972

• Picture

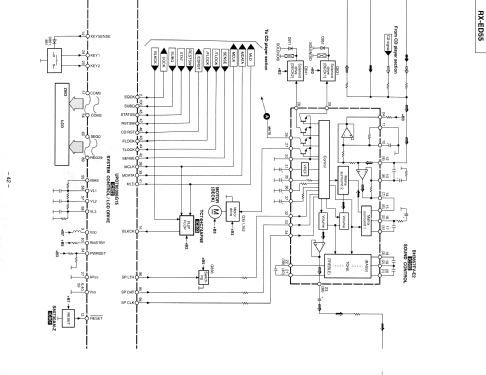

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Other Combination - see Notes; Remote Control (with wire or wireless)

• Power type and voltage
• Line / Batteries (any type) / 230-240 / ? Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 cm = 3.1 inch

• Power out
• 20 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo Radio Cassetten-Recorder CD RX-ED55 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 470 x 143 x 270 mm / 18.5 x 5.6 x 10.6 inch

• Notes

• Stereo Radio Cassetten-Recorder CD RX-ED55.
  Frequenz FM 87,5-108 MHz.
  Frequenz AM 522-1611 kHz.
  2 x Cassettendeck, jeweils 4-Spur, CD-Spieler.

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Price in first year of sale
• 170.00 €

• Author
• Model page created by Michael Wilhammer. See "Data change" for further contributors.

• Other Models

• Here you find 3036 models, 2812 with images and 630 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
