Super Drive VCR - DVD / CD Player NV-VHD1E

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 2001 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 273993

• Picture

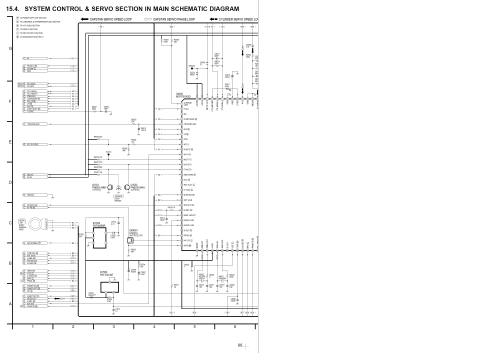

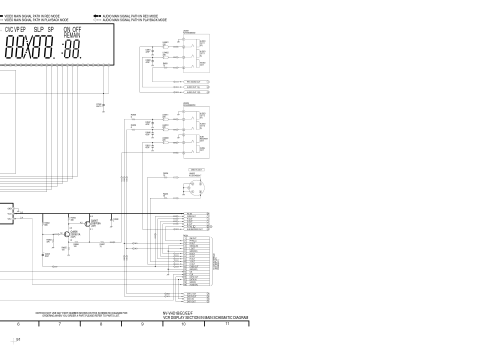

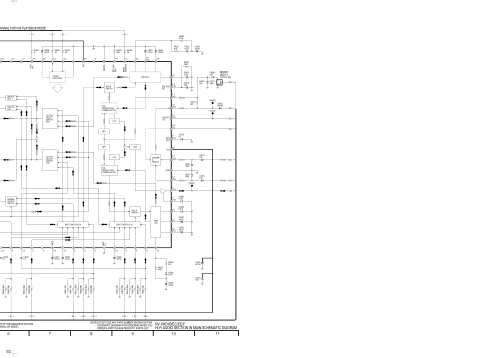

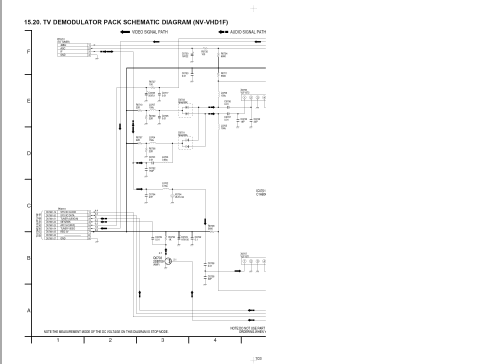

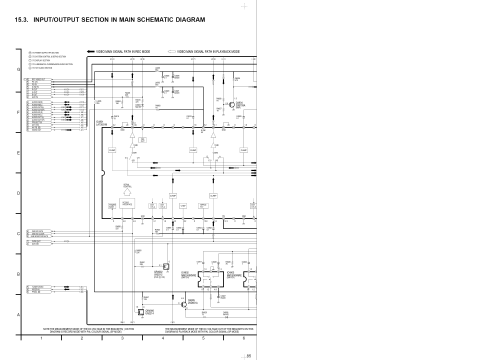

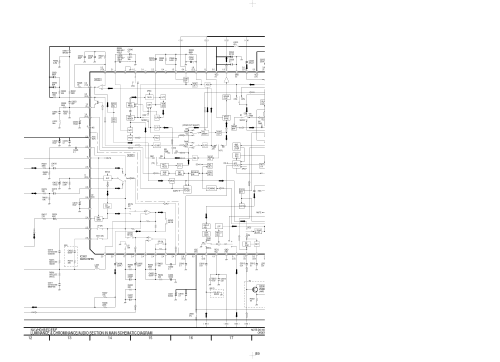

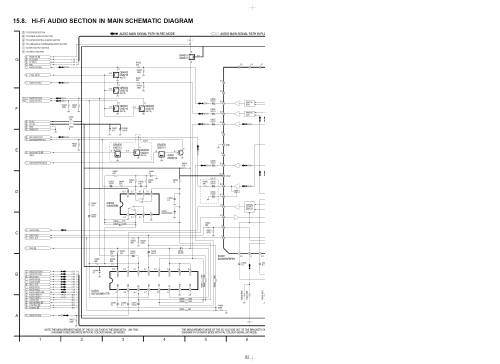

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Super Drive VCR - DVD / CD Player NV-VHD1E - Panasonic, Matsushita,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 90 x 330 mm / 16.9 x 3.5 x 13 inch

• Notes

• Video Cassette Recorder Hi-Fi Stereo Nicam/A2 and DVD/CD player.

  • DVD video/audio output: analog and digital; Dolby digital / DTS surround decoders.
  • CD player output: analog and digital.
  • VCR video/audio output: analog only.
  • Built-in tuner with VHF and UHF channels.








• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
