TC-46 EU

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1973
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 145774

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • 31
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 12 cm = 4.7 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TC-46 EU - Panasonic, Matsushita,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 490 x 370 x 410 mm / 19.3 x 14.6 x 16.1 inch
  • Notes
  • National TC-46 EU;

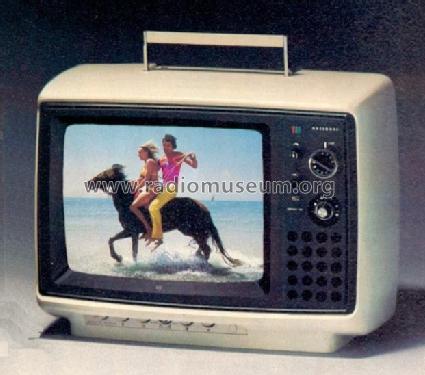

    36 cm/90° Super Matrix PAL portable style colour TV, CCIR B/G VHF turret & UHF dial tuner, 6 IC, white finish, "Instant-on circuit", sharpness control.
  • Net weight (2.2 lb = 1 kg)
  • 19 kg / 41 lb 13.6 oz (41.85 lb)
  • Price in first year of sale
  • 1,548.00 DM
  • Mentioned in

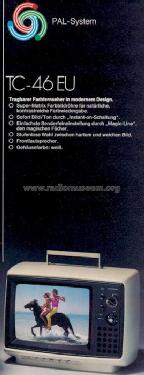

  • -- Original prospect or advert ((D) National Gesamtprogramm Frühjahr/Sommer 1973)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
