- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 183227
Q: Panasonic, Service-Unterlagen

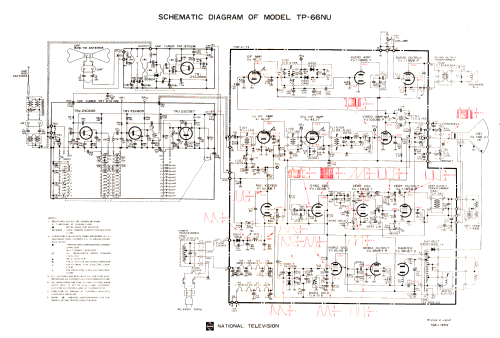

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Valves / Tubes
- 4EH7 or LF183 4EJ7 or LF184 10DX8 or LCL84 4EJ7 or LF184 11BM8 or LCL82 6LX8 or LCF802 11MS8 38HE7 unknown_CRT
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TP-62NU - Panasonic, Matsushita,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
National TP-62NU;
~29 cm b/w TV with CCIR B/G VHF turret & UHF dial tuner, 100 W power consumption.Transistorized VHF and UHF tuner.
