Tri-Axial Hi-Fi EAS-25PX13
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1967–1972
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 357959
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers / Ø 10 inch = 25.4 cm
- Material
- Various materials
- from Radiomuseum.org
- Model: Tri-Axial Hi-Fi EAS-25PX13 - Panasonic, Matsushita,
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-

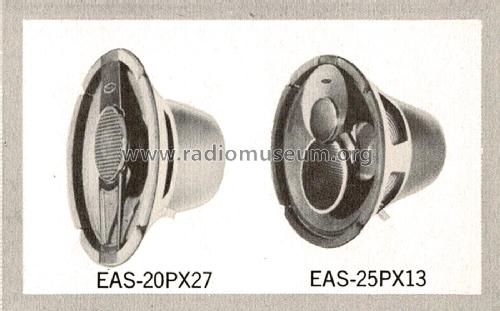

Three-cone 25 cm (10") compound speaker unit EAS-25PX13
- Rated input: 12 W
- Voice coil impedance: 16 Ω
- Frequency response: 30~16,000 Hz.
- Lowest resonance frequency: 35 Hz to 60 Hz
- Magnetic flux density: low 9,000 Gauss, middle 10,500 Gauss, high 10,500 Gauss
- Output sound pressure level: 100 dB
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Price in first year of sale
- 35.00 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1968 to Aug 1972.)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
