• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1986

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 221098

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

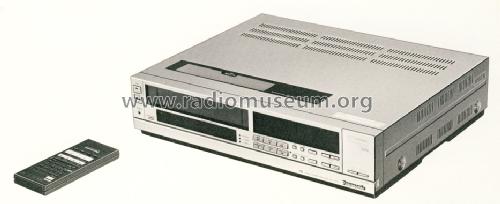

• Model: Video Cassette Recorder NV-H70 EG - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 99 x 365 mm / 16.9 x 3.9 x 14.4 inch

• Notes
• Panasonic Video Cassette Recorder NV-H70 EG,
  System VHS Format, VPS, HiFi-Longplay, Stereo, Frontlader,
  Leistungsaufnahme: 40 Watt, VHF/UHF,
  lieferbar in den Farben schwarz und silber.

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Source of data
• -- Original prospect or advert
