• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1996 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 222665

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

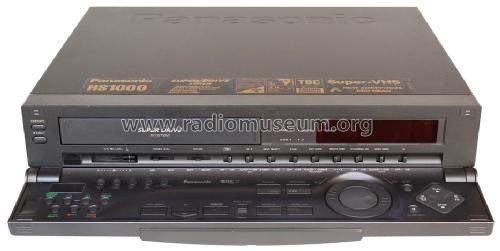

• Model: Panasonic Video Cassette Recorder NV-HS1000EG - Panasonic, Matsushita,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 120 x 396 mm / 16.9 x 4.7 x 15.6 inch

• Notes

• Panasonic Video Cassette Recorder NV-HS 1000 EG,
  Video-Format: VHS/S-VHS, HiFi-Stereo, Jog-Shuttle,
  Tuner: UHF/VHF, SP/LP Betrieb, VPS, ShowView.

  Siehe auch Blaupunkt RTV-966 HiFi.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)
