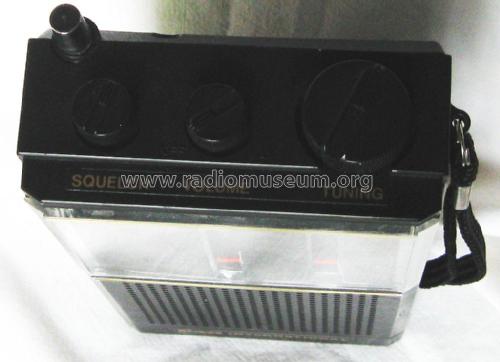

CB-80 Channel TV1-FM PB-AIR Receiver

Pan International GmbH, Pan Elektronik; Aachen, Würselen, Hamburg

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 331415

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 3 x 1,5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CB-80 Channel TV1-FM PB-AIR Receiver - Pan International GmbH, Pan
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 94 x 215 x 54 mm / 3.7 x 8.5 x 2.1 inch
  • Notes

  • Pan International 80-Channel CB-TV1-FM-Air-WB-PB Receiver, schwenkbare Teleskopantenne 50 cm, Anschluß für ext. Netzgerät (DC 6 Volt), Kopfhörerausgang über Klinkenbuchse 3,5 mm, U.K. Design Reg.No. 100298.

    Ähnlich Combicontroll8, Combicontroll5 und Combicontrol3, jedoch mit integrierten Schaltkreisen aufgebaut.

    See also ABA, Bicon and Turbo.

  • Net weight (2.2 lb = 1 kg)
  • 0.432 kg / 0 lb 15.2 oz (0.952 lb)
  • Author
  • Model page created by Holger Struthoff. See "Data change" for further contributors.
