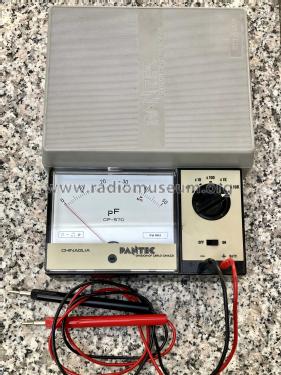

Capacimetro - Kapazitäts-Messgerät CP570
Pantec, Division of Carlo Gavazzi
- Country
- Italy
- Manufacturer / Brand
- Pantec, Division of Carlo Gavazzi
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 255964
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 2 x 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Capacimetro - Kapazitäts-Messgerät CP570 - Pantec, Division of Carlo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 85 x 40 mm / 5.9 x 3.3 x 1.6 inch
- Notes
-
Messung von Kondensatoren von 1pF bis 0,5uF.
Drehspul-Messwerk, gegen Überlastung und Verpolung gesichert. Betrieb über 2x 9V-Blockbatterien. Genauigkeit 3%, Rechteck-Prüfspannung.5 campi di misura da 0 a 0,5 µF:
- 1: da 0 a 50 pF
- 2: da 0 a 500 pF
- 3: da 0 a 5.000 pF
- 4: da 0 a 50.000 pF
- 5: da 0 a 500.000 pF
Precisione dichiarata: 3 % sul fondo scala.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Karl Reiter. See "Data change" for further contributors.
