Major - Multimetro analógico 20K
Pantec, Division of Carlo Gavazzi
- Country
- Italy
- Manufacturer / Brand
- Pantec, Division of Carlo Gavazzi
- Year
- 1975 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 275010
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Major - Multimetro analógico 20K - Pantec, Division of Carlo
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 125 x 130 x 38 mm / 4.9 x 5.1 x 1.5 inch
- Notes
-

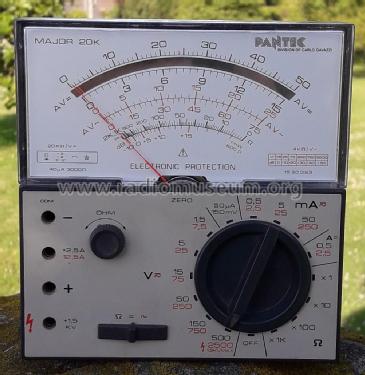

Multimetro analógico, conmutador rotativo con las siguientes medidas:
Tensión continua: 150mV, 1´5, 5, 15, 50, 150, 500 V.
Tensión alterna: 7´5, 25, 75, 250, 750, 2500 V.Intensidad en continua: 50uA, 0´5mA, 5mA, 50mA, 0´5A.
Intensidad en alterna: 2´5mA, 25mA, 250mA, 2´5A.Resistencia ohmica: x1, x10, x100, x1k
Ajuste a cero mediante potenciometro.Conmutador de selección de magnitudes a medir.
- Net weight (2.2 lb = 1 kg)
- 0.390 kg / 0 lb 13.7 oz (0.859 lb)
- Price in first year of sale
- 7,500.00 Pesetas
- Author
- Model page created by Juan Bautista Ruiz Pérez. See "Data change" for further contributors.
