• Year
  • 1945 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18791

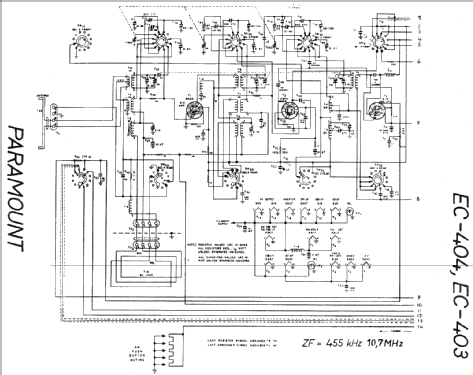

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: mit UKW EC404 - Paramount Radio Corporation;
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 999 x 998 x 520 mm / 39.3 x 39.3 x 20.5 inch
  • Notes
  • Ch=403
  • Price in first year of sale
  • 3,750.00 SFR
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
