Loose Coupler
Parke & Co., John Y.; Philadelphia, PA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Parke & Co., John Y.; Philadelphia, PA
- Year
- 1915 ?
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 328085
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Material
- Wooden case
- from Radiomuseum.org
- Model: Loose Coupler - Parke & Co., John Y.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 470 x 165 x 165 mm / 18.5 x 6.5 x 6.5 inch
- Notes
-

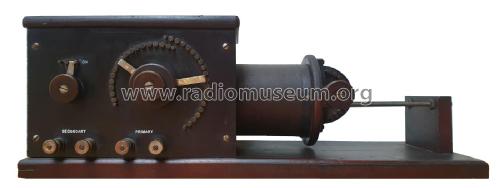

In oak housing with ebonite knobs and brass contacts. Two slides on the primary coil with 16 and 18 taps, and 12 taps on the secondary coil.
- Author
- Model page created by John Koster. See "Data change" for further contributors.
