• Country
• Italy

• Manufacturer / Brand
• Parker (Radio Parker); Viareggio

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 326427

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 unknown_Tube EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

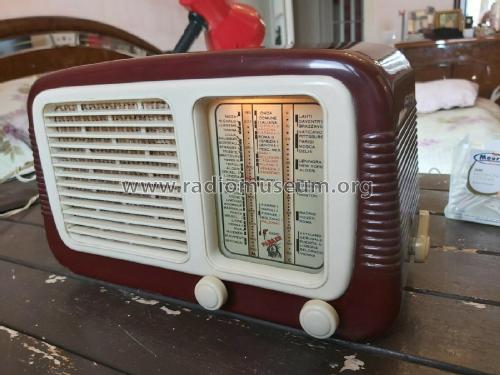

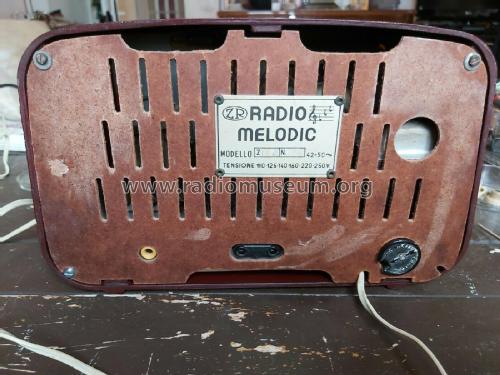

• Model: Melodic Z-100? Z-10C? - Parker Radio Parker; Viareggio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Simile al modello RC513.

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
