- Country
- United States of America (USA)
- Manufacturer / Brand
- Patterson Radio Co. / Electric Co.; Los Angeles, CA
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50305
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 458 kHz; 3 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2106AW - Patterson Radio Co. / Electric
- Shape
- Console with any shape - in general
- Notes
- BC (550-1500 kHz), TROP (1600-4500 kHz), SW1 (4.5-12.0 MHz) and SW2 (11.5-20.0 MHz) bands. Push-pull audio amplifier. 8 or 12 inch speaker.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Rider's 6-2, 6-3, 6-4
- Other Models
-
Here you find 111 models, 45 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Patterson Radio Co. / Electric Co.; Los Angeles, CA
Forum contributions about this model: Patterson Radio Co.: 2106AW
Threads: 1 | Posts: 1

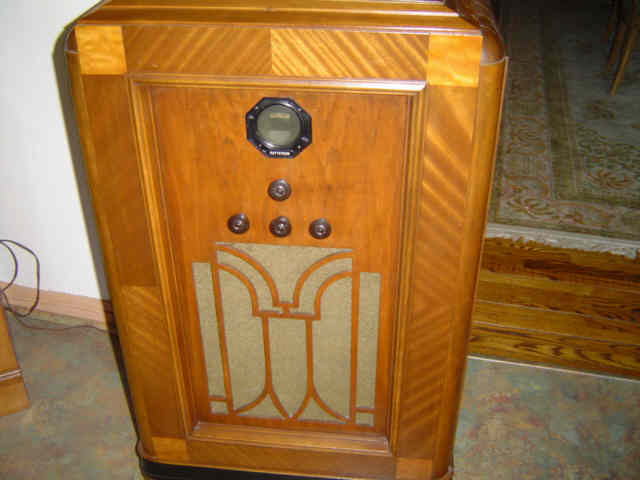

This is a 10 tube console radio from the mid 30's. It has these tubes(valves) 5Z3, 2 pcs #42's as outputs, 3 pcs 6D6, 6A7, 6C6, 76, & a 6A6. It is called "all wave" because it has the standard AM band plus 3 other short wave bands. There are 4 separate knobs on the radio. 1. off/on volume,2. tone control,3. tuning, & 4. band selection.
When you change bands, the visual display changes in the window.
When you change bands, the visual display changes in the window.
Attachments
Marvin J. Glassman, 12.Oct.05
