Rita Ch= Sultan Teak/Ahorn
Pawerphon, Werner & Röttger; Berlin
- Country
- Germany
- Manufacturer / Brand
- Pawerphon, Werner & Röttger; Berlin
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 22314
-
- alternative name: Klang-Technik Böthner & Co.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

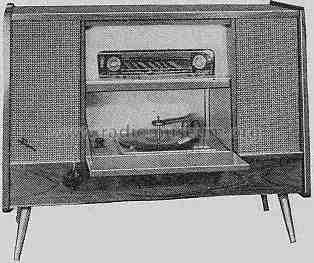

- Model: Rita Ch= Sultan [Teak/Ahorn] - Pawerphon, Werner & Röttger;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1070 x 840 x 440 mm / 42.1 x 33.1 x 17.3 inch
- Notes
- Rundfunk-Chassis = Blaupunkt Sultan;
Phono-Chassis = Philips AG1007.
Teak oder Ahorn, hell.
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Price in first year of sale
- 838.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 2, Ernst Erb
