A/505
Peba Radio; Alessandria
- Country
- Italy
- Manufacturer / Brand
- Peba Radio; Alessandria
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 195070
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: A/505 - Peba Radio; Alessandria
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 320 x 300 mm / 25.6 x 12.6 x 11.8 inch
- Notes
- Gamme d'onda: 2 medie e tre corte.
Wave bands: 2x BC, 3x SW.
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Mentioned in
- D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli
- Literature/Schematics (1)
- Il Manuale del Radiomeccanico (Vol.3°)
- Literature/Schematics (2)

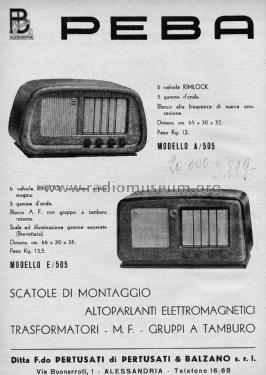

- -- Original prospect or advert (Radio, n. 16, novembre 1950, Editrice Radio, Torino)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
