• Country
• Italy

• Manufacturer / Brand
• Peba Radio; Alessandria

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175432

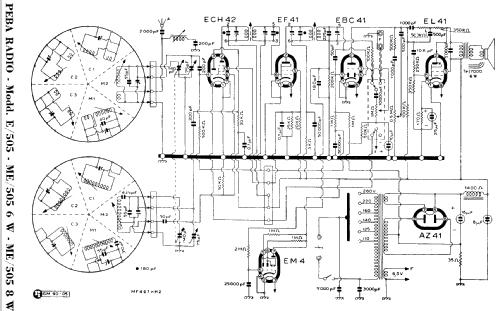

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

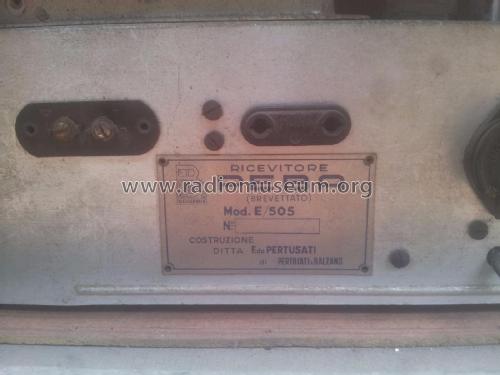

• Model: E/505 [ECH42] - Peba Radio; Alessandria

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 350 x 300 mm / 26 x 13.8 x 11.8 inch

• Notes

• Gamme d'onda: 2 medie e 3 corte.

  Vedi anche E/505 [ECH4] con differenti valvole (Europa).



• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• -- Original prospect or advert (Radio, n. 16, novembre 1950, Editrice Radio, Torino)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
