• Country
• Italy

• Manufacturer / Brand
• Peba Radio; Alessandria

• Year
• 1946–1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 325744

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF9 EBC3 EL3 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz; 1 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

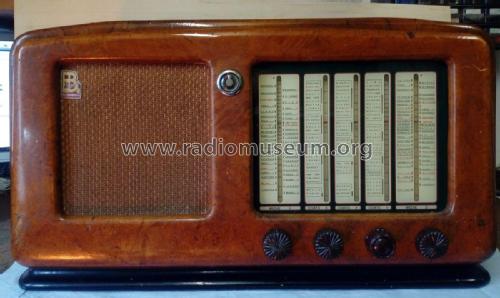

• Model: E/505 [ECH4] - Peba Radio; Alessandria

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 350 x 300 mm / 26 x 13.8 x 11.8 inch

• Notes

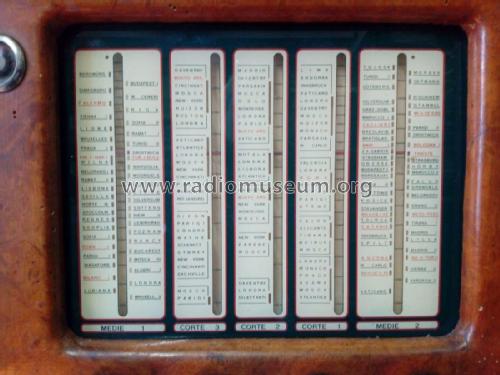

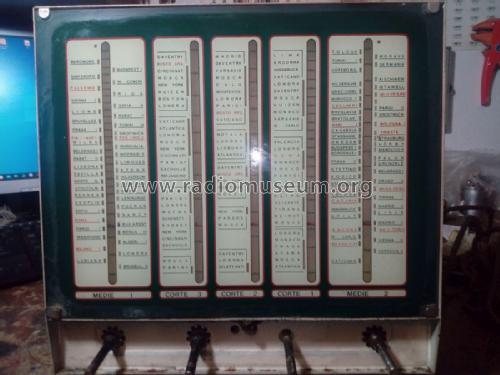

• Gamme d'onda: 2 medie e 3 corte.

  Vedi anche E/505 [ECH42] con differenti valvole (rimlock).



• Author
• Model page created by Fabrizio Palombi. See "Data change" for further contributors.
