• Country
• Germany

• Manufacturer / Brand
• Peiker Acustic GmbH & Co. KG; Bad Homburg, Friedrichsdorf/Ts.

• Year
• 1990 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 323410

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

• Material
• Metal case

• from Radiomuseum.org

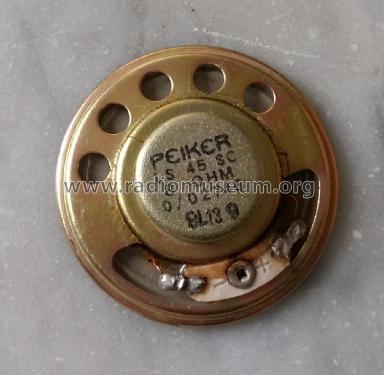

• Model: Speaker LS 45 SC - Peiker Acustic GmbH & Co. KG;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 45 x 45 x 9 mm / 1.8 x 1.8 x 0.4 inch

• Notes

• Impedance 8 Ω.

• Net weight (2.2 lb = 1 kg)
• 0.020 kg / 0 lb 0.7 oz (0.044 lb)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
