Penncrest Six Transistor 1132
JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232702
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Penncrest Six Transistor 1132 - JCPenney, Penney's, J.C.Penney
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 113 x 67 x 28 mm / 4.4 x 2.6 x 1.1 inch
- Notes
-
Penncrest AM Pocket Radio Model Six Transistor 1132.

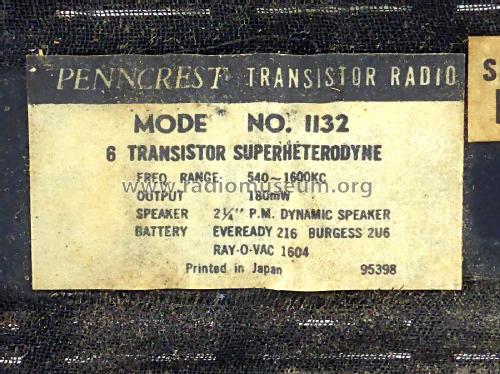

US Civil Defense marks on the station dial. Embossed on back case in a sunken circle with "6 Transistors", "Model No. 1132", and "Japan".
Differs from Penncrest 1130 model only by color. The 1130 has a silver front plate / gold luster grill. Nearly identical to Penney 6TP-555 model.
Made in Japan
- Mentioned in
- Transistor Radios 1954-68 (p.111)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
