- Country
- United States of America (USA)
- Manufacturer / Brand
- Pentron Corporation; Chicago (IL)
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 176486

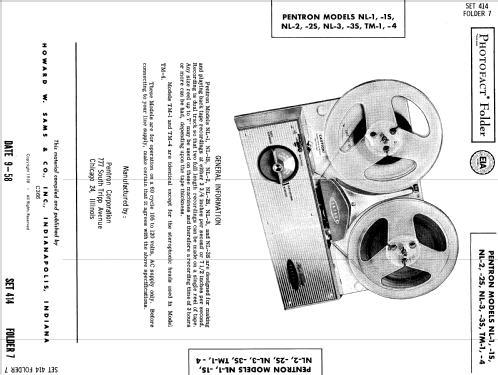

Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 105 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: NL-1 - Pentron Corporation; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14 x 11 x 17 inch / 356 x 279 x 432 mm
- Notes
- The Pentron Model NL-1 is an AC operated two speed two track tape recorder.
- Net weight (2.2 lb = 1 kg)
- 25 lb 0 oz (25 lb) / 11.350 kg
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-58, Set 414, Folder 7)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
