• Country
• Great Britain (UK)

• Manufacturer / Brand
• Perdio Electronics Ltd. / Products Ltd.; London, Stanmore

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79474

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material

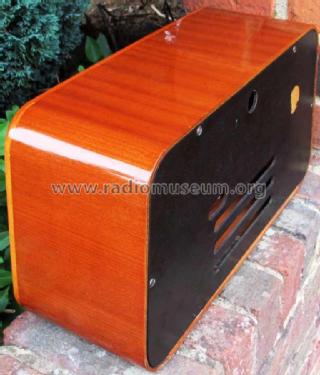

• Wooden case

• from Radiomuseum.org
• Model: PR22 - Perdio Electronics Ltd. /

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 410 x 225 x 140 mm / 16.1 x 8.9 x 5.5 inch

• Notes
• Transistors: OC44, 2x OC45, OC71, OC81D, 2x OC81. Same chassis as the Perdio PR73 but without shortwave.

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
