• Country
• Germany

• Manufacturer / Brand
• Perpetuum-Ebner (PE); St.Georgen

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28423

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 39

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage

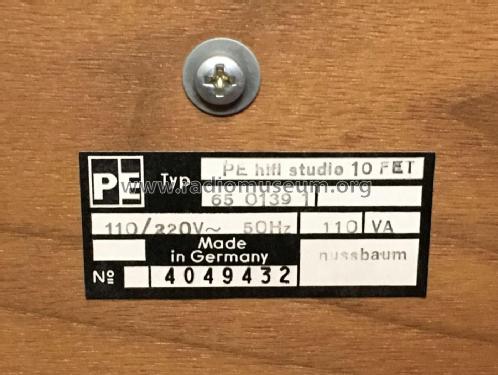

• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

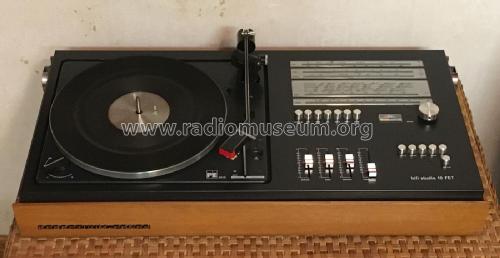

• Model: HiFi Studio 10FET [Nussbaum] - Perpetuum-Ebner PE; St.Georgen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 690 x 200 x 340 mm / 27.2 x 7.9 x 13.4 inch

• Notes

• Vollstereo, NF-Verstärker mit zwei Endstufen je 20 W (Sinus);

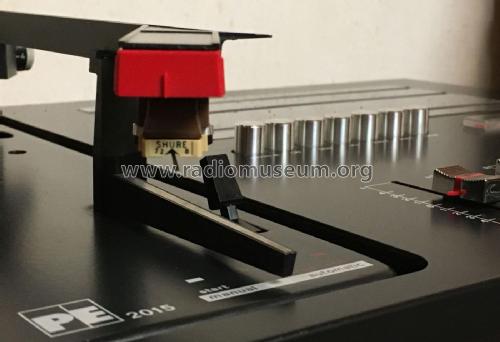

  Phono-Chassis = PE2015.

• Net weight (2.2 lb = 1 kg)
• 15.3 kg / 33 lb 11.2 oz (33.7 lb)

• Price in first year of sale
• 1,370.00 DM

• External source of data
• Erb

• Source of data

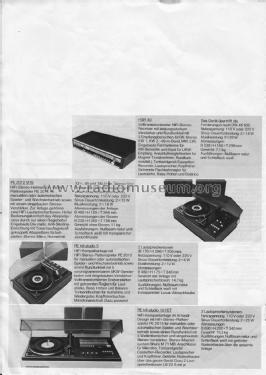

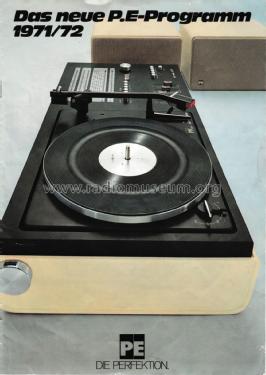

• Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
