• Country
• Germany

• Manufacturer / Brand
• Perpetuum-Ebner (PE); St.Georgen

• Year
• 1970–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28047

• Number of Transistors
• 29

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 13 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

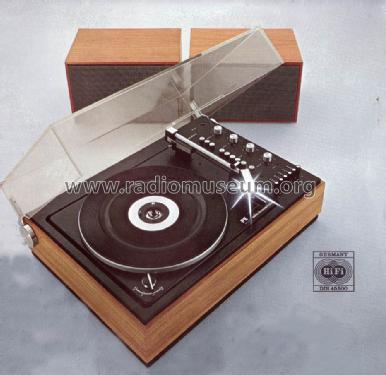

• Model: hifi studio 5 [Nussb.] - Perpetuum-Ebner PE; St.Georgen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 175 x 346 mm / 18.9 x 6.9 x 13.6 inch

• Notes
• Vollstereo, NF-Verstärker mit zwei Endstufen je 6 W (Sinus), 2 Lautsprecherboxen im Lieferumfang.
  Phono-Chassis = PE2010.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 1,105.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb
