- Country
- Germany
- Manufacturer / Brand
- Perpetuum-Ebner (PE); St.Georgen
- Year
- 1967/1968
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 118147

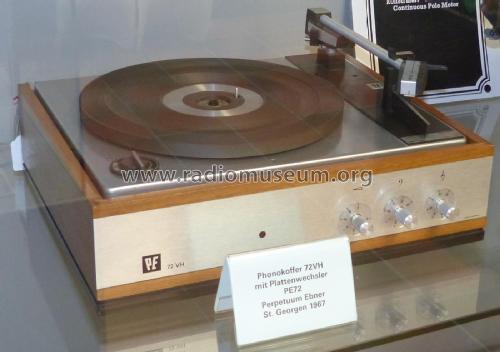

Gerät steht im Phonomuseum St. Georgen
Katalogo PE

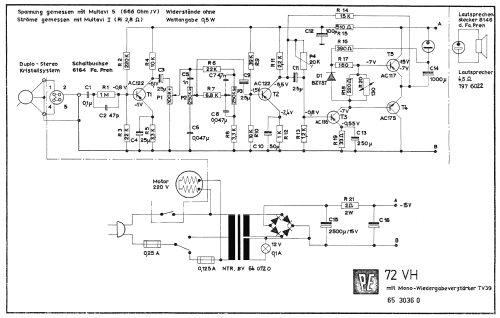

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: PE72VH - Perpetuum-Ebner PE; St.Georgen
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 360 x 180 x 336 mm / 14.2 x 7.1 x 13.2 inch
- Notes
- Phono-Chassis = PE72; Lautsprecherbox (333×173×127 mm) im Lieferumfang.
- Net weight (2.2 lb = 1 kg)
- 9.1 kg / 20 lb 0.7 oz (20.044 lb)
- Price in first year of sale
- 379.00 DM
- Source of data
- Handbuch VDRG 1967/1968
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
