• Country
• Germany

• Manufacturer / Brand
• Perpetuum-Ebner (PE); St.Georgen

• Year
• 1966–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26724

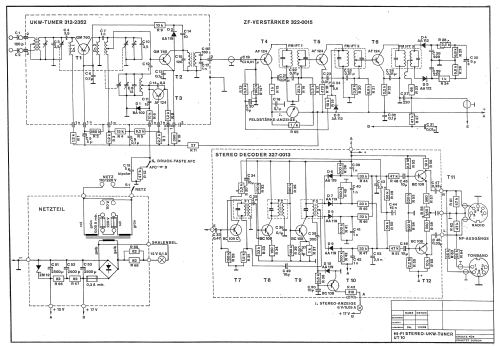

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• GM760 GM760 AF124 AF124 AF124 AF124 BC109 BC108 BC108 BC108 BC108 BC108 BA102 AA119 AA112 ZM12

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: UT10 - Perpetuum-Ebner PE; St.Georgen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 110 x 205 mm / 17.3 x 4.3 x 8.1 inch

• Notes

• PE HiFi-Stereo-Tuner UT10.
  Frequenzbereich 87,5 ... 108,5 MHz. Feldstärke-Anzeige, AFC.

  Enthält die Görler-Baugruppen

  • 312-2352 UKW-Mischteil mit 3-fach Drehkoabstimmung
  • 322-0015 ZF-Verstärker, 3-stufig
  • 327-0013 Stereo-Decoder

  Dioden teilweise mehrfach vorhanden.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 648.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funk-Technik (FT) (9/1966, S. 344 u. 347 / Beschreibung, Daten,Prinzipschema)
