• Country
• Germany

• Manufacturer / Brand
• Peter, August,Tonmöbelfabrik; Plauen/Vogtl. (Ostd.)

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141445

• • Brand: VEB Tonmöbel

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM84 EM84 ECC83 EL84 EL84 EZ81

• Number of Transistors
• 3

• Semiconductors

• Main principle
• ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

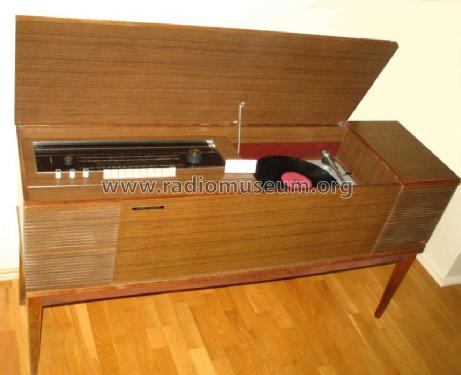

• Model: Musiktruhe Anita - Peter, August,Tonmöbelfabrik;

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1420 x 470 x 460 mm / 55.9 x 18.5 x 18.1 inch

• Notes

• Enthält den Empfänger REMA 2070 Version B oder REMA 2070 Version C (je nach Auslieferungsland) und Plattenspieler Perfekt 006 vom Funkwerk Zittau.

  Ab 1969 gab es diese Truhe auch mit dem Empfänger-Chassis des Transstereo 2401.

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in

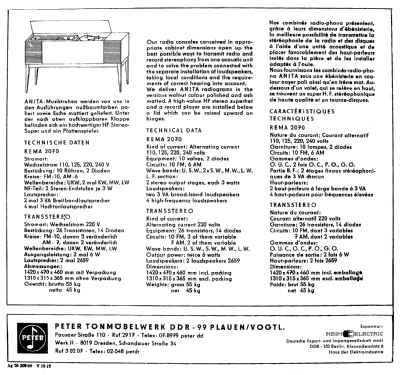

• -- Original prospect or advert

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
