• Country
• Germany

• Manufacturer / Brand
• Peter, August,Tonmöbelfabrik; Plauen/Vogtl. (Ostd.)

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73569

• • Brand: VEB Tonmöbel

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

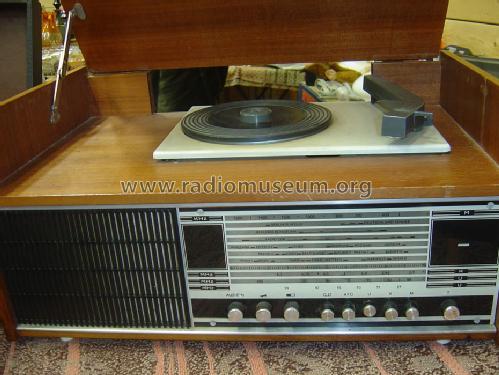

• Model: Phonostar [Transistor] - Peter, August,Tonmöbelfabrik;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 515 x 250 x 320 mm / 20.3 x 9.8 x 12.6 inch

• Notes
• Enthält Radio Transmiranda 6200 von Stern-Radio Sonneberg und Plattenspieler Apart von Ziphona.
  Vorjahresmodell noch mit Röhren-Empfänger.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
