• Country
• Soviet Union

• Manufacturer / Brand
• Petropavlovsk Radio Works

• Year
• 1962–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77605

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6Н14П 6Ф1П 6К4П 6И1П 6К4П 6К4П 6Х2П 6Х2П 6Ж2П 6Е1П 6Н2П 6Н6П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 8 AM circuit(s)     4 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

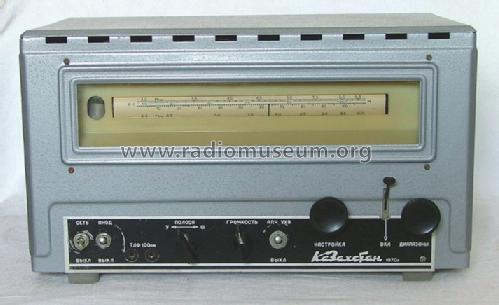

• Model: Kazahstan {Казахстан} - Petropavlovsk Radio Works

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 250 x 260 mm / 16.9 x 9.8 x 10.2 inch

• Notes

• This radio was used for broadcasting on cable radio network. Shortwave coverage 3,0 - 18,0 MHz. See also receiver model "Kazahstan 2" which has BFO and an additional tube 6j2p.

  F. Specification

  LW 0,15 – 0,4 MHz

  MW 0,52 – 1,6 MHz

  FM 64,5 – 73 MHz

  SW 1 3 – 6,3 MHz

  SW2 6,3 – 10 MHz

  SW1 10 – 14 MHz

  SW1 14 – 18 MHz



  Output 600 Ohm

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
