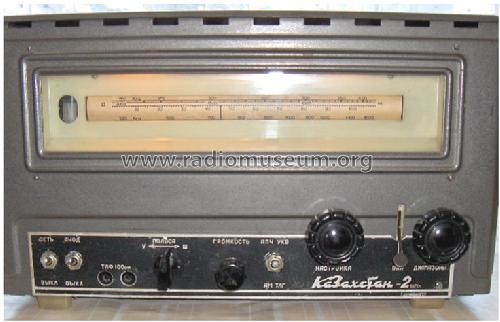

Kazahstan {Казахстан} 2
Petropavlovsk Radio Works
- Country
- Soviet Union
- Manufacturer / Brand
- Petropavlovsk Radio Works
- Year
- 1966–1974 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 77609
Thanks for Valery Charcenko, Russia
Thanks for Valery Charcenko, Russia
- Number of Tubes
- 13
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 8 AM circuit(s) 4 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 127/220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Kazahstan {Казахстан} 2 - Petropavlovsk Radio Works
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 430 x 250 x 260 mm / 16.9 x 9.8 x 10.2 inch
- Notes
- This radio used for broadcasting on cable radio network. SW coverage 3,0-18,0 MHz. Telegrafic signal reception is possible on this model Kazahstan 2. See also the model Kazahstan without the BFO (one 6j2p then missing).
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Author
- Model page created by Zenonas Langaitis. See "Data change" for further contributors.
