• Country
• Germany

• Manufacturer / Brand
• Pfalzgraf, Carl; Berlin

• Year
• 1927

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 194802

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Is a battery or storage battery / 4 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: Heiz-Akkumulator DMI - Pfalzgraf, Carl; Berlin

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 122 x 209 x 118 mm / 4.8 x 8.2 x 4.6 inch

• Notes

• 4-Volt Element im Doppel-Rippenglasgefäß.

• Net weight (2.2 lb = 1 kg)
• 8.250 kg / 18 lb 2.7 oz (18.172 lb)

• Literature/Schematics (1)

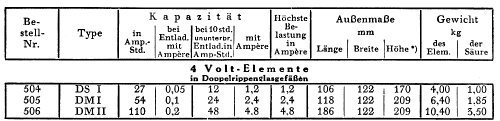

• Pfalzgraf-Broschüre, 1927

• Author
• Model page created by a member from D. See "Data change" for further contributors.
